New London Architecture

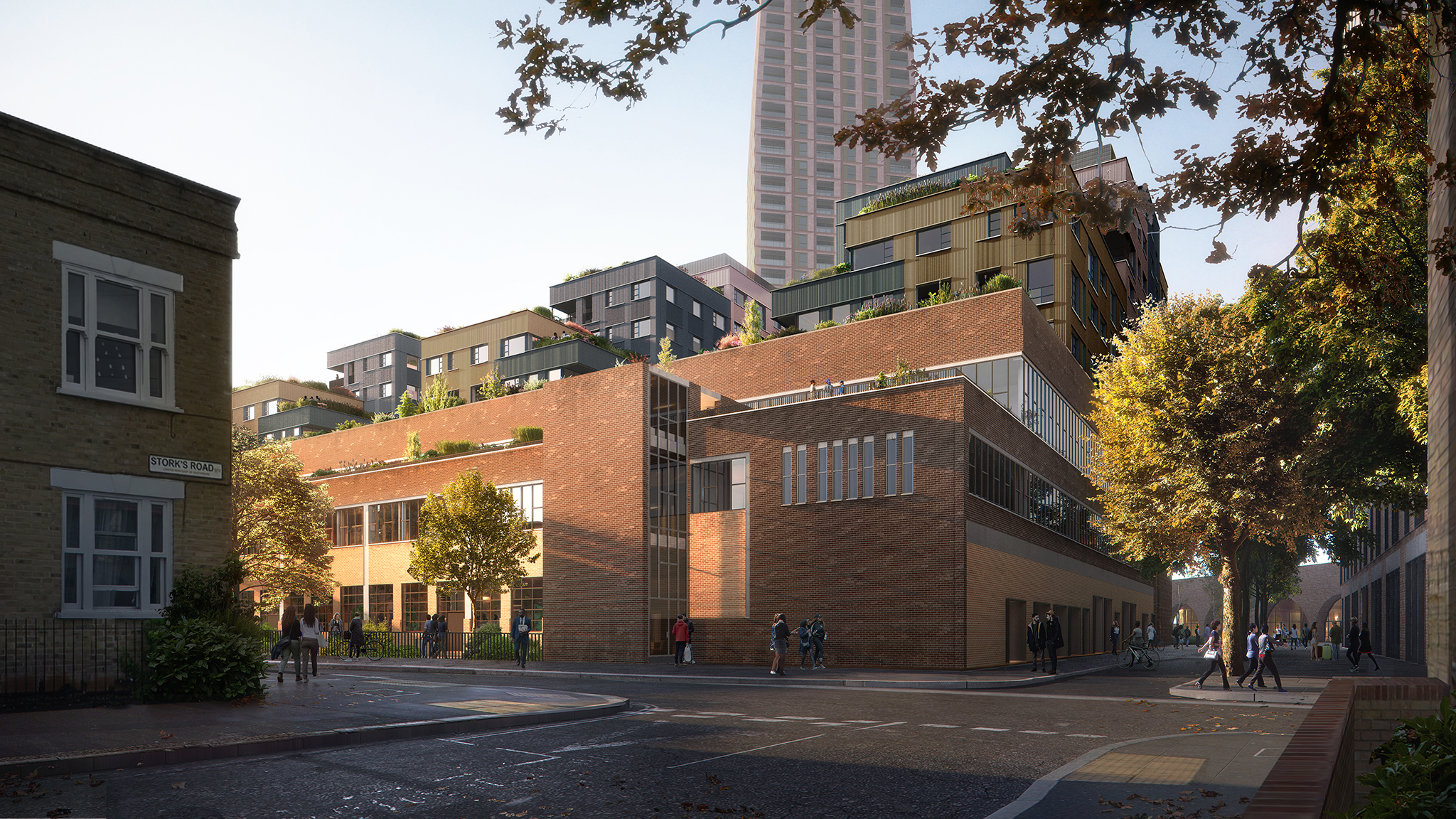

Building F, The Bermondsey Project

Planning Granted

A central component of the Bermondsey Project, this redundant 1970s biscuit warehouse is being reimagined to create an innovative and sustainable, mixed-use hub and extension to the public realm.

A central component in the Bermondsey Project masterplan, Building F is a former biscuit warehouse, constructed in the 1970s. This is being reimagined to create a mixed-use hub; adding 177 residential units above the existing roof line; creating retail and employment space on the lower floors; and extending the public realm.

The Biscuit Factory will be a hybrid building, combining reuse with new build. Grosvenor are exploring lower carbon alternatives to traditional concrete frames. While changes to regulations have made using CLT more challenging, Grosvenor and the design team are pioneering work with consultants and the wider industry to develop a solution compliant with the latest regulations.

As part of delivering Grosvenor’s Sustainability Development Framework the project team is being challenged to provide innovative design solutions to minimise embodied carbon through the building’s lifecycle. A cradle to practical completion target of 500kg/CO2e/m2 and 300kg/CO2e/m2 is targeted for non-domestic and residential elements respectively to deliver performance aligned with Grosvenor’s 2030 carbon objectives and long-term sustainability vision (more detail below).

The masterplan is connected to a district heating scheme with local energy generation, from SELCHP, an advanced Energy Recovery Facility that uses non-recyclable waste to generate electricity, providing low-carbon energy and reducing the pressure on landfill sites.

The masterplan reimagines an underused Factory site in an inner London location, reintegrating it with the surrounding residential area, introducing pedestrianised streets for better connection to sustainable and active transport methods. There will be 1,548 rental homes (35% affordable), a 600-place secondary school and c.14,000 sqm of flexible employment space. The masterplan includes three acres of public and play space, 141 new trees and no private cars on site.

Resilient London: confronting climate change

Resilient London: confronting climate change

A central component in the Bermondsey Project masterplan, Building F is a former biscuit warehouse, constructed in the 1970s. It is being retained and repurposed as a mixed-use hub, adding 165 residential units above the existing roof line, creating retail and employment space on the lower floors, and extending the public realm.

The Grosvenor Britain & Ireland’s masterplan reimagines an underused factory site in an inner London location, reintegrating it with the surrounding residential area, introducing pedestrianised streets for better connection to sustainable and active transport methods. There will be 1,548 rental homes (35 per cent affordable), a 600-place secondary school and c.14,000 sqm of flexible employment space. The masterplan includes three acres of public and play space, 141 new trees and no private cars on site.

The Warehouse will be a hybrid building, combining reuse with new build. A cradle to practical completion aims for less than 500kg/CO2e/m2 to deliver performance aligned with Grosvenor’s 2030 net zero carbon objective and long-term sustainability vision. As part of delivering Grosvenor’s Sustainability Development brief, the team is being challenged to provide innovative design solutions to minimise embodied carbon through the building’s lifecycle.

The development will also be connected to a district heating scheme with local energy generation, from SELCHP, an advanced Energy Recovery Facility that uses non-recyclable waste to generate electricity, providing low-carbon energy and reducing the pressure on landfill sites.

By retaining the existing warehouse, total embodied carbon emissions are reduced by 16 per cent over the initial baseline model. Upper floors constructed from a CLT hybrid solution significantly reduce embodied carbon. The introduction of a zero-car scheme encourages sustainable travel, whilst the green roofs will contribute to SUDS, improving air quality.

The development embraces low carbon energy, working towards a net zero-carbon balance. Connection to SELCHP sources heat from waste diverted from landfill and there is also passive ventilation, combined with MVHR, to reduce energy use.
Zero Carbon London

Zero Carbon London

→ Targeting BREEAM Excellent (Offices)
→ Urban Greening Factor 0.3 over 5.4 hectare site (masterplan)
→ At lest 55% reduction of operational energy against Part L
→ An embodied carbon aspiration of 300kg/CO2e/m2 is targeted for Building F

A central component in the Bermondsey Project masterplan, Building F is a former biscuit warehouse, constructed in the 1970s. This is being reimagined to create a mixed-use hub; adding 177 residential units above the existing roof line; creating retail and employment space on the lower floors; and extending the public realm.

The Biscuit Factory will be a hybrid building, combining reuse with new build. Grosvenor are exploring lower carbon alternatives to traditional concrete frames. While changes to regulations have made using CLT more challenging, Grosvenor and the design team are pioneering work with consultants and the wider industry to develop a solution compliant with the latest regulations.

As part of delivering Grosvenor’s Sustainability Development Framework the project team is being challenged to provide innovative design solutions to minimise embodied carbon through the building’s lifecycle. A cradle to practical completion target of 500kg/CO2e/m2 and 300kg/CO2e/m2 is targeted for non-domestic and residential elements respectively to deliver performance aligned with Grosvenor’s 2030 carbon objectives and long-term sustainability vision.

The masterplan is connected to a district heating scheme with local energy generation, from SELCHP, an advanced Energy Recovery Facility that uses non-recyclable waste to generate electricity, providing low-carbon energy and reducing the pressure on landfill sites.

Embodied carbon emissions are reduced by 16 per cent over the initial baseline model by retaining the existing warehouse. Other measures include the use of CLT hybrid solution for constructions of the upper floors, and the reuse of demolition material where possible, such as for landscaping components.

It is a zero private car scheme, and encourages sustainable travel. Green roofs contribute to SUDS and improve air quality and wellbeing. Passive ventilation, combined with MVHR, reduces energy use.

Project information

Status

Planning Granted

Borough

Southwark

Completion

June 2024


Location

FWVQ+P4 Barking, UK


Team Credits

Client

Grosvenor Britain & Ireland

Architect

Kohn Pedersen Fox Associates (KPF)

Landscape Architect

Arup

Structural Engineer

AKT II

Structural Engineer

AKT II

M&E / Sustainability Engineer

TFT

MEP

Arup Infrastructure

Transport Consultant

WSP

Planning Consultant

Gerald Eve

Visualiser

Plomp

MEP/Vertical Transportation/Accoustic Consultant

Hilson Moran
